      11-02-2021, 09:13 AM   #45
704g30
Private
704g30's Avatar
United_States
84
Rep
64
Posts

Drives: 2017 BMW 540i
Join Date: Nov 2020
Location: Mooresville, NC

iTrader: (0)

Garage List
2017 BMW 540i  [0.00]
Quote:
Originally Posted by Joe-BMW33 View Post

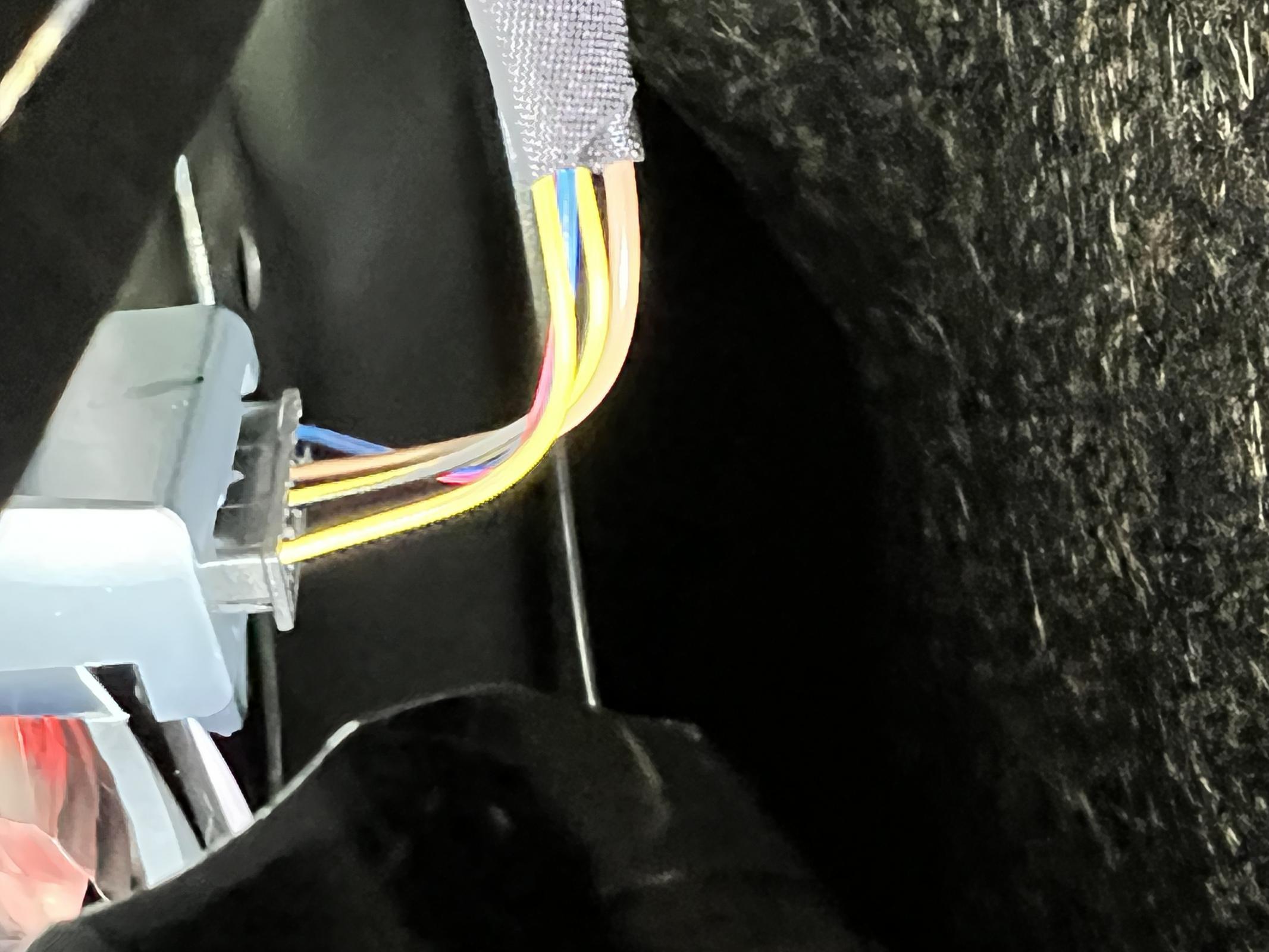

My lucky day. I've got the rear fog wires! All six pins full. Pin 1 is the fogs. Black yellow, Black white.
Awesome!!
__________________
Daily - 2017 540i xDrive | Retired - 2003 E46 330i 6MT

Instagram 704g30

Appreciate 1
Joe-BMW33489.00
      11-02-2021, 09:20 AM   #46
Joe-BMW33
Major
Joe-BMW33's Avatar
United_States
489
Rep
1,231
Posts

Drives: 2018 BMW M550i, 2003 BMW 540i
Join Date: Apr 2021
Location: Boston

iTrader: (0)

Quote:
Originally Posted by 704g30 View Post
Quote:
Originally Posted by Joe-BMW33 View Post
My lucky day. I've got the rear fog wires! All six pins full. Pin 1 is the fogs. Black yellow, Black white.
Awesome!!
Yup, I'm pleasantly surprised. Got my touchscreen climate control panel in too!
__________________
2018 M550ix|Carbon Black Dinan Stage 1|2003 540i|Jet Black|M-Sport
Prior BMW's: 1987 325e|1993 740i|1998 740il|2001 530i|2002 745li|2007 750li|2006 750li|2001 530i|2012 535xi|
Appreciate 1
704g3084.00
      11-03-2021, 07:35 AM   #47
704g30
Private
704g30's Avatar
United_States
84
Rep
64
Posts

Drives: 2017 BMW 540i
Join Date: Nov 2020
Location: Mooresville, NC

iTrader: (0)

Garage List
2017 BMW 540i  [0.00]
For those of you who only have one light that comes on, is that because you only have one physical light set in one side, or do you have both but only one works? I have both LEDs, but only the left side works and after coding I'm at a loss as to why.

For those of you who have them, when you press the brakes does the inner set of brake lights on the trunk still come on? With my LCI lights, when I press the brakes the inner brake lights don't come on but all the rest do. No errors were displayed or anything. Normally when I press the brakes with the fog lights off, the inner and outer lights come on. Wondering if that is intended with the rear fogs or not. I also thought that maybe because the inner brake lights don't come on with pre-LCI, but since the inner and outers work with the fog lights off I wasn't sure.

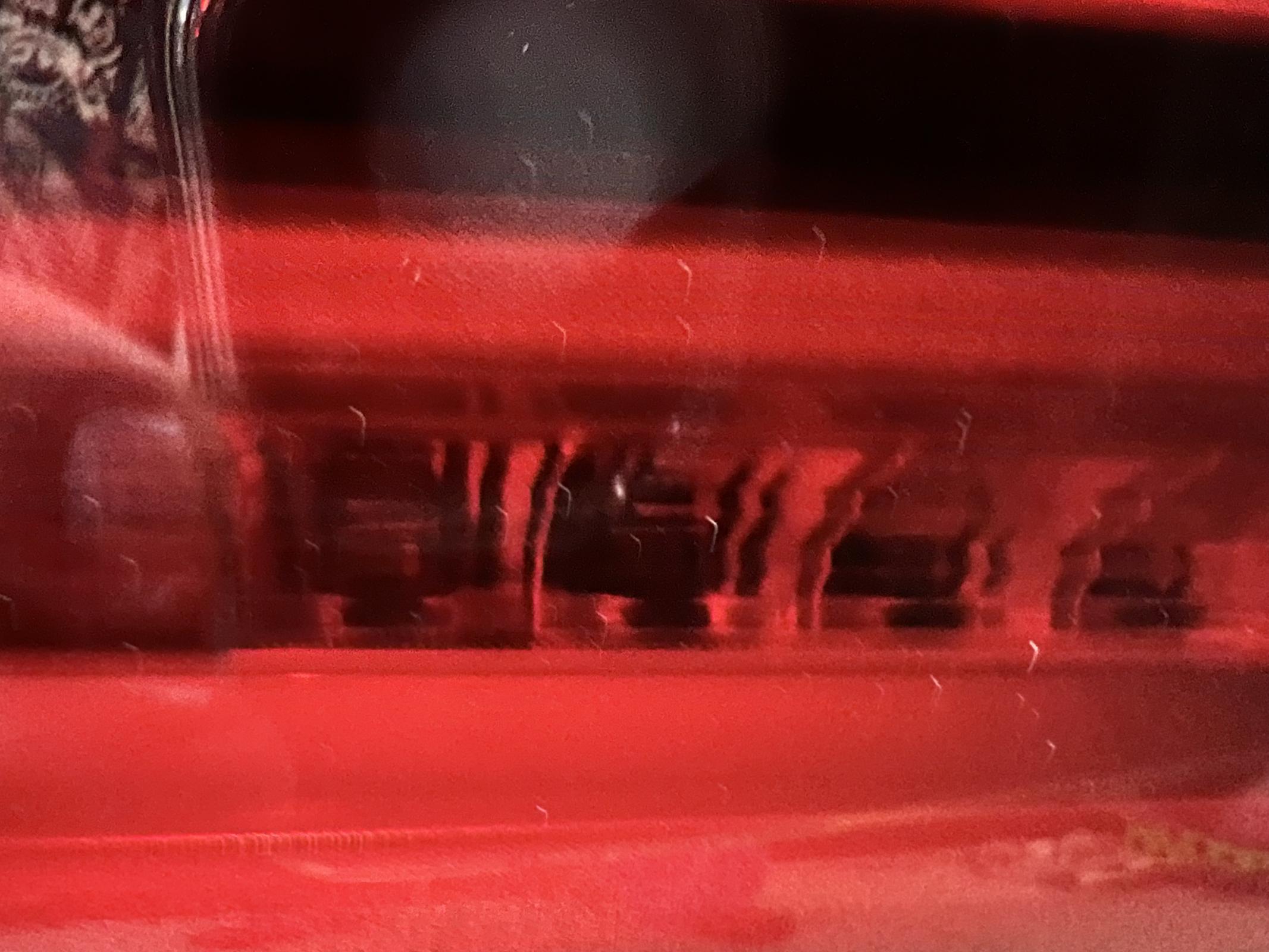

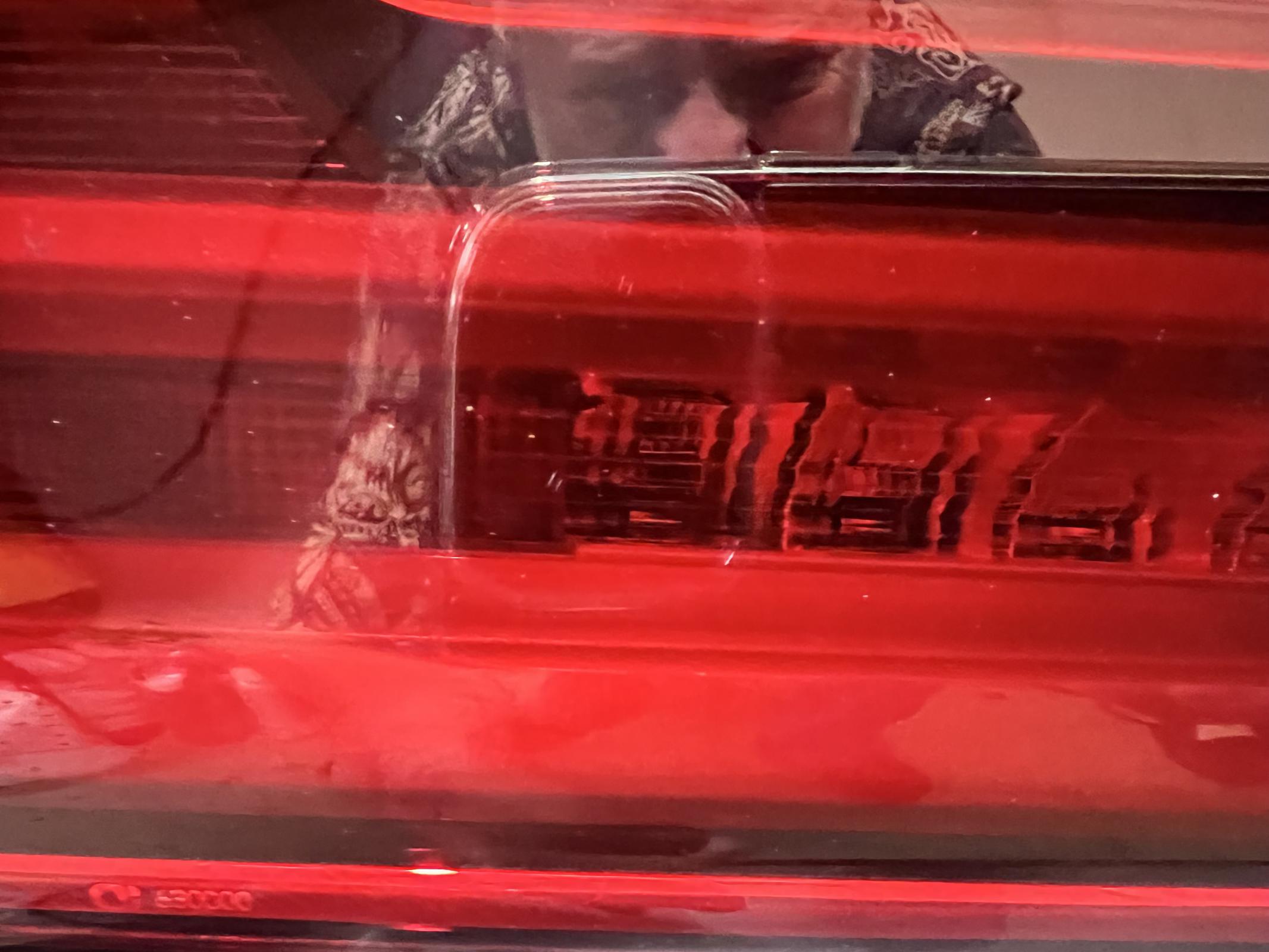

Pic is from when I wired them up wrong at first during install so I know they are both there.
Attached Images

__________________
Daily - 2017 540i xDrive | Retired - 2003 E46 330i 6MT

Instagram 704g30


Last edited by 704g30; 11-03-2021 at 07:59 AM..
Appreciate 0
